Home / Products / Anesthetic Gas Monitor / Anesthetic Gas MonitorFI-8000

Anesthetic Gas Monitor

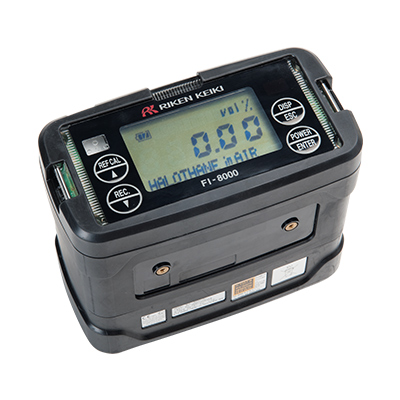

Anesthetic Gas MonitorFI-8000

Riken make FI‐8000 for Anesthetic gas is highly accurate gas analyser which can measure various Anesthetic gases in mixture of Oxygen or Air. It uses highly reliable optical interferometeric technology with Fourier analysis to give direct digital readout with high accuracy.

Download Brochure

Features
Specification
Accessories
Gases and ranges

Measures various Anesthetic gases
Ideal for checking calibration of anaesthetic vaporizers
Measurement Gas Changeable on field by customer
Long life and Reliable Interferometric sensor
Accurate and fast Monitoring of Gas Conc. Few consumables parts, saves maintenance cost

Easy to use, no special Skill or training required
Improved design, Lightweight & Robust structure
Large Display with back light
Inbuilt data logging
Dust & Water proof to IP 67

Model	FI-8000
Measuring principle	Optical interferometric method
Measuring gas	Refer gases & ranges.
Indication accuracy	Within ± 3％ (at constant temperature)※
Type	TYPE P - □□-□□	TYPE A - □□-□□
Sampling method	Pump suction type	Hand-aspirating type
Self-diagnosis function	Low battery, Low light, Low contrast, abnormal atmospheric pressure and abnormal temperature
Display	LCD digital (7- segment value display + code + 20 segment word x 2 lines)
Each display	Measuring gas, gas concentration, measuring unit and battery capacity reminder
Power source	Alkaline battery pack (AA size battery x 3 pcs) (standard) Or, Lithium ion battery (optional)
Ingress proof rating	IP67 equivalent
Ambient humidity & temp	Temperature : -20～50°C, Humidity : Below 95％RH (Non-condensing)
Dimensions	Approx. 154 (W) × 127 (H) × 81 (D) mm
Weight	Approx. 1.1 kg (including alkaline batteries) Approx. 1.2 kg (including lithium ion batteries)
Explosion proof	Intrinsically safe Exia IIc T4
Continuous operation	Above 12 hrs (for alkaline battery use) Above 18 hrs (for lithium ion battery use) (25°C with no back light on)	Above 16 hrs (for alkaline battery use) Above 24 hrs (for lithium ion battery use) (25°C with no back light on)
External output	IrDA (for data logging)
Function	Data logging, atmospheric pressure correction, temp compensation

※Indication accuracy subject to the measuring gas.

Common Accessories (Anaesthetic/Fumigation/Customized Gas)

Gas Samplingtube (1m)
Shoulder Strap
Hand-aspirator
(For TYPE A only)

Anaesthetic Accessories

Absorption Tube
Tube Fix Belt

Optional Accessories

Lithium Ion Battery Unit
Datalogging Software
AC adaptor

Measuring Gas Base Gas	Halothane	Isoflurane	Sevoflurane	Desflurane
O2 gas	0-6% VOL	0-8% VOL	0-10% VOL	0-20% VOL
Air base	0-6% VOL	0-8% VOL	0-10% VOL	0-20% VOL
