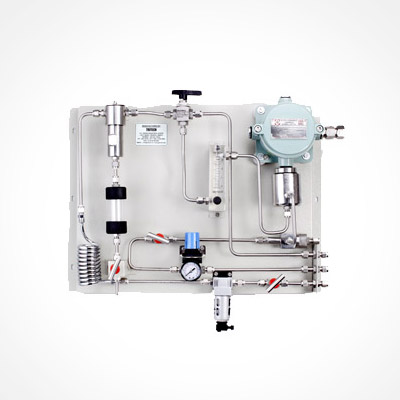

Sampling System

Sampling System

Single or dual sensor system is designed to monitor Gas atmospheres from extreme conditions with either Temperature, Moisture, or Pressure challenges. A powerful Air Aspirator or Electric Pump can pull a sample from up to 100 feet away. The filtered and conditioned sample Gas is then passed across one or two different Detectors. This system is fault tolerant removing the need for expensive downtime and maintenance.

The panel can be used with direct-connect (sensors connected to an Tritech controller), or with XT Series, and 2X Series transmitters. All transmitters have a 4-20 mA signal for direct connection to the site DCS, PLC or site control system. If needed, Tritech can supply a dedicated Gas Detection Control system to provide local Alarms, 4-20 mA output with a wide range of dry contacts, making the system very sophisticated and user friendly.

Integral sample Filter included to remove Water and Dirt, Automatic Drain type models are also available.

  • Features
  • Applications
  • Approvals
  • Specification
  • Accessories
  • List Of Gases Detected
  • Simple to operate
  • Long life Air Aspirator or Electric Pump type.
  • Extreme sample temperatures
  • One or two sensors
  • Inside/outside location options
  • Corrosion resistant construction for extreme environments / samples
  • Uses proven Tritech technology
  • Modular design easy to maintain
  • Moisture trap
  • Flammable, Oxygen, or Toxic Monitoring
  • Centrifuge / Reactors
  • Wastewater
  • Drinking Water Plants
  • Gas Turbine Monitoring Flammable and CO Gases
  • Tunnel Monitoring
  • Landfill Borehole Analyses
  • Printing Press Exhaust Solvent Recovery
  • Winery CO2 / O2
  • IIA - IIB, Optionally IIC certified by CCOE ( PESO ) / ERTL (E)
Gas Sensors One or Two
Gas Sensor Options H2, CH4, HC’s 0-100%LEL, CO, CO2, H2S, and O2. Other gases available. Contact RKI instruments
Sensor Type Catalytic, Electrochemical, IR
Sensor Outputs 4-20 mA, or modbus output.
Note : Sensor heads sold separately. See RKI models M2, S2, or Direct Connect sensors
Maximum Sample Line Length 100' (1/4" OD. tube)
Compressed Air Requirements 10 to 140 PSI compressed air or N2
Operating Temperature See Detector head specification
System Enclosure (optional) MS/GRP or Stainless Steel.
Sample Flow Across the Detector Head 1.0 – 1.5 LPM
Compressed Air Usage Typical 6 SCFH (3 LPM)
Purge / Calibration Manual operated valves for Zero / calibration
Filtration In line filters, automatic drain,

Note : Specifications subject to change without notice.

  • Trilog Software
  • Repeater Panel
  • Auto Dialer
  • TM-2014
  • TM-2015
  • TM-800/1600
  • TM-08/16
  • Flame Proof Flasher
  • Safe Area Hooter
Combustible / Explosive / Flammable Gases
Toxic Gases
VOC Gases
Gas Name
Acetic Acid
Acetic Anhydride
Allyl Alcohol
Alkyl Alcohol
N-Amyl Alcohol
1.3 Butadiene
Trans Butene-2
n Butyl Alcohol
Iso Butyl Alcohol
Tert Butyl Alcohol
N-Butyl Benzene
Iso Butyl Benzene
n Butyric Acid
Butyl Acetate
N-Butyl Benzene
ISO-Butyl Benzene
Carbon Disulphide
Carbon Oxysulphide
CNG (Compressed Natural Gas)
2.3 Dimethylpentane
2.2 Dimethylpropane
Dimethyl Sulphide
Ethyl Acetate
Ethyl Alcohol
Ethyl Amine
Ethyl Benzene
Ethyl Bromide
Ethyl Chloride
Ethyl Cyclopentane
Ethyl Ether
Ethylene Dichloride
Ethylene Oxide
Ethyl Formate
Ethyl Mercaptan
LPG (Liquified Petroleum Gas)
Methane (LNG)
Methyl Chloride
Methyl Cyclohexane
Methylene Dichloride
Dimethyl Ether
Methyl Ethyl Ether
Methyl Ethyl Ketone
Methyl Format
Methyl Mercaptan
Methyl Propionate
Methyl Propyl Ketone
Iso Pentane
n Propyl Alcohol
n Propyl Amine
n Propyl Chloride
PNG ( Piped Natural Gas)
Propylene Oxide
Iso-Propyl Ether
Styrene Monomer
Tetra Hydra Furan
White Spirit
And many more
Gas Name Formula
Chlorine Cl2
Sulphur Dioxide SO2
Hydrogen Cyanide HCN
Hydrogen Sulphide H2S
Carbon Monoxide CO
Volatile Organic Compound VOC
Ammonia NH3
Acetic Acid CH3COOH
Ammonia NH3
Ammonia NH3
Arsine AsH3
Boron Trichloride BCl3
Boron Trifluoride BF3
Bromine Br2
Carbon Dioxide CO2
Carbon Dioxide CO2
Carbon Dioxide CO2
Carbon Dioxide CO2
Carbon Monoxide CO
Carbon Monoxide CO
Carbon Monoxide CO
Chlorine Cl2
Chlorine Trifluoride ClF3
Combustible PPM PPM
Diborane B2H6
Dichlorosilane DCS
Disilane Si2H6
Fluorine F2
Formaldehyde HCHO
Germane GeH4
Halocarbons HCFC
Hexane C6H14
Hydrazine N2H4
Hydrocarbon PPM PPM
Hydrogen PPM H2
Hydrogen Bromide HBr
Hydrogen Chloride HCl
Hydrogen Cyanide HCN
Hydrogen Fluoride HF
Hydrogen Iodide HI
Hydrogen Sulfide H2S
Hydrogen Sulfide H2S
Hydrogen Sulfide H2S
Iodine I2
Isopropyl Alcohol (IPA) CH3CHOHCH3
Nitric Acid HNO3
Nitric Oxide NO
Nitrogen Dioxide NO2
Nitrogen Tetraoxide N2O4
Nitrogen Trifluoride NF3
Octafluorocyclopentene C5F8
Ozone O3
Perfluorobutadiene C4F6
Phosphine PH3
Silane SiH4
Silicon Tetrachloride SICI4
Silicon Tetrafluoride SiF4
Sulphur Dioxide SO2
Sulphur Tetrafluoride SF4
Tetraethyl Orthosilicate TEOS
Trichlorosilane TCS
Trimethoxy Phosphate TMP
Trimethoxyboron TMB
Tungsten Hexafluoride WF6
1 1 1-Trichloroethane C2H3CI3
And many more
Gas Name Formula
Acetaldehyde C2H4O
Acetamide C2H5NO
Acetic acid C2H4O2
Acetic anhydride C4H6O3
Acetoin C4H8O2
Acetone C3H6O
Acetophenone C8H8O
Acetyl bromide C2H3BrO
Acetylglycine, N- C4H7NO3
Acrolein C3H4O
Acrylic Acid C3H4O2
Alkanes, n-, C6+
Allyl alcohol C3H6O
Allyl bromide C3H5Br
Allyl chloride C3H5Cl
Allyl glycidyl ether C6H10O2
Allyl propyl disulfide C6H12S2
Ammonia NH3
Amyl acetate C7H14O2
Amyl acetate, sec- C7H14O2
Amyl alcohol C5H12O
Amyl alcohol, tert- C5H12O
Amyl methyl ether, tert- C6H14O
Anethole C10H12O
Aniline C6H7N
Anisole C7H8O
Anisyl aldehyde C8H8O2
Arsine AsH3
Asphalt, petroleum fumes
Benzaldehyde C7H6O
Benzene C6H6
Benzene thiol C6H5SH
Benzoic acid C7H6O2
Benzonitrile C7H5N
Benzoquinone, o- C6H4O2
CNG (Compressed Natural Gas) C6H4O2
Benzoyl bromide C7H5BrO
Benzyl 2-phenylacetate C15H14O2
Benzyl acetate C9H10O2
Benzyl alcohol C7H8O
Benzyl chloride C7H7Cl
Benzyl formate C8H8O2
Benzyl isobutyrate C11H14O2
Benzyl nitrile C8H7N
Benzyl propionate C10H12O2
Benzylamine C7H9N
Biphenyl C12H10
Borneol C10H18O
Bromine Br2
Bromo-2,2-dimethylpropane, 1- C5H11Br
Bromo-2-chloroethane, 1- C2H4BrCl
Bromo-2-methylpentane, 1- C6H13Br
Bromoacetone C3H5BrO
Bromoacetylene C2HBr
Bromobenzene C6H5Br
Bromobutane, 1- C4H9Br
Bromobutane, 2- C4H9Br
Bromocyclohexane C6H11Br
Bromoethane C2H5Br
Bromoethanol, 2- C2H5BrO
Bromoethyl methyl ether, 2- C3H7BrO
Bromoform CHBr3
Bromopropane, 1- C3H7Br
Bromopyridine, 4- C5H4BrN
Bromotrimethylsilane C3H9BrSi
But-2-ynal C4H4O
But-3-ynal C4H4O
Butadiene diepoxide, 1,3- C4H6O2
Butadiene, 1,3- C4H6
Butane, n- C4H10
Butanedione, 2,3- C4H6O2
Butanoic acid C4H8O2
Butanol, 1- C4H10O
Buten-3-ol, 1- C4H8O
Butene, 1- C4H8
Butene, 2- C4H8
Butene, cis-2- C4H8
Butene, trans-2- C4H8
Butenoic acid, 3- C4H6O2
Butoxyethanol, 2- C6H14O2
Butoxyethylacetate, 2- C8H16O3
Butyl acetate C6H12O2
Butyl acetate, sec- C6H12O2
Butyl acetate, tert- C6H12O2
Butyl acrylate C7H12O2
Butyl alcohol, sec- C4H10O
Butyl benzene, tert- C10H14
Butyl butyrate C8H16O2
Butyl chloroformate C5H9ClO2
Butyl cyclohexan-1-ol, 4- tert- C10H20O
Butyl cyclohexyl acetate, 2tert- - C12H22O2
Butyl ether, n- C8H18O
Butyl glycidyl ether C7H14O2
Butyl iodide C4H9I
Butyl isocyanate C5H9NO
Butyl lactate C7H14O3
Butyl mercaptan C4H10S
Butyl mercaptan, tert- C4H10S
Butyl methacrylate C8H14O2
Butyl propionate, n- C7H14O2
Butylamine, n- C4H11N
Butylamine, sec- C4H11N
Butylamine, tert- C4H11N
Butylene carbonate, 1,2- C5H8O3
Butylphenol, o-sec- C10H14O
Butyn-1-ol, 2- C4H6O
Butyn-2-one C4H4O
Butyraldehyde C4H8O
Butyrolactone, gamma- C4H6O2
Butyryl chloride C4H7ClO
Camphene C10H16
Camphor C10H16O
Carbon disulfide CS2
Carbon suboxide C3O2
Carbon tetrabromide CBr4
Carene C10H16
Carvone, R- C10H14O
Caryophyllene C15H24
Chloramine ClH2N
Chlorine dioxide ClO2
Chloro-1,1-difluoroethene, 2- C2HClF2
Chloro-2-propanone, 1- C3H5ClO
Chloroacetaldehyde C2H3ClO
Chlorobenzene C6H5Cl
Chlorobutane, 1- C4H9Cl
Chlorobutane, 2- C4H9Cl
Chlorocyclohexane C6H11Cl
Chloroethyl methyl ether, 2- C3H7ClO
Chloromethoxyethane C3H7ClO
Chloroprene C4H5Cl
Chloropyridine, 2- C5H4ClN
Chlorostyrene, o- C8H7Cl
Chlorotoluene, m- C7H7Cl
Chlorotoluene, o- C7H7Cl
Chlorotoluene, p- C7H7Cl
Chlorotrifluoroethylene C2ClF3
Cinnamic aldehyde C8H8O
Cinnamyl acetate C11H12O2
Cinnamyl alcohol C9H10O
Citral C10H16O
Citronellal C10H18O
Citronellol C10H20O
Citronellol acetate C12H22O2
Citronellol formate C11H20O2
Citronellyl isobutyrate C14H26O2
Coumarin C9H6O2
Cresol, m- C7H8O
Cresol, o- C7H8O
Cresol, p- C7H8O
Cresyl acetate, p- C9H10O2
Cresyl ethyl ether, p- C9H12O
Cresyl methyl ether C8H10O
Crotonaldehyde C4H6O
Cumene C9H12
Cyclobutanone C4H6O
Cyclobutene C4H6
Cycloheptane C7H14
Cyclohex-2-enedione, 1,4- C6H6O2
Cyclohexane C6H12
Cyclohexanol C6H12O
Cyclohexanone C6H10O
Cyclohexanthiol C6H12S
Cyclohexene C6H10
Cyclohexyl acetate C8H14O2
Cyclohexylamine C6H13N
Cyclooctadiene C8H12
Cyclopentadiene C5H6
Cyclopentane C5H10
Cyclopentanone C5H8O
Cyclopentene C5H8
Cyclopentene-1,3-dione, 4- C5H4O2
Cymene, p- C10H14
Decahydronaphthalene C10H18
Decanal C10H20O
Decane C10H22
Decyne, 1- C10H18
Diacetone alcohol C6H12O2
Diazine, 1,2- C4H4N2
Diazine, 1,3- C4H4N2
Dibromoacetylene C2Br2
Dibromochloromethane CHBr2Cl
Dibromocyclohexane, 1,2- C6H10Br2
Dibromocyclopentane C5H8Br2
Dibromodichloromethane CBr2Cl2
Dibromoethane, 1,2- C2H4Br2
Dibromoethene, 1,1- C2H2Br2
Dibromoethene, 1,2- C2H2Br2
Dibromomethane CH2Br2
Dichloro-1,2-difluoroethene, 1,2- C2Cl2F2
Dichloro-1-propene, 2,3- C3H4Cl2
Dichloro-2,2,-difluoroethene, 1,1- C2Cl2F2
Dichloroacetylene C2Cl2
Dichlorobenzene, o- C6H4Cl2
Dichlorobenzene, p- C6H4Cl2
Dichloroethene, 1,1- C2H2Cl2
Dichloroethene, cis-1,2- C2H2Cl2
Dichloroethene, trans-1,2- C2H2Cl2
Dichloroethylene 1,2- C2H2Cl2
Dichloromethane CH2Cl2
Dichloromethylamine CH3Cl2N
Dicyclohexylamine C12H23N
Dicyclopentadiene C10H12
Diesel fuel
Diethoxymethane C4H10O2
Diethyl carbonate C5H10O3
Diethyl ether C4H10O
Diethyl maleate C8H12O4
Diethyl phthalate C12H14O4
Diethyl sulfate C4H10SO4
Diethyl sulfide C4H10S
Diethyl sulfone C4H10O2S
Diethylacetylene C6H10
Diethylamine C4H11N
Diethylaminopropylamine, 3- C7H18N2
Diethylenetriamine C4H13N3
Diethylhydroxylamine C4H11NO
Diethylsilane C4H12Si
Diglycidyl ether C6H10O3
Dihydroeugenol C10H14O2
Dihydrojasmone C11H18O
Dihydromercenol C10H20O
Dihydroxybenzene, 1,2- C6H6O2
Dihydroxybenzene, 1,3- C6H6O2
Diiodomethane CH2I2
Diisobutyl ketone C9H18O
Diisobutylene C8H16
Diisopropyl benzene C12H18
Diisopropyl ether C6H14O
Diketene C4H4O2
Dimethoxybenzene, 1,4- C8H10O2
Dimethoxymethane C3H8O2
Dimethyl cyclohexane, 1,2- C8H16
Dimethyl disulfide C2H6S2
Dimethyl ether C2H6O
Dimethyl octan-1-ol, 3,7- C10H22O
Dimethyl octan-3-ol, 3,7- C10H22O
Dimethyl pentane, 2,4- C7H16
Dimethyl phthalate C10H10O4
Dimethyl sulfoxide C2H6OS
Dimethylacetamide N,N- C4H9NO
Dimethylacetylene C4H6
Dimethylaminoethanol, 2- C4H11NO
Dimethylaniline, NN- C8H11N
Dimethylboron bromide C2H6BBr
Dimethylbutyl acetate C8H16O2
Dimethylcycloheptane, 1,2- C9H18
Dimethylethylamine, NN- C4H11N
Dimethylformamide C3H7NO
Dimethylhydrazine, 1,1- C2H8N2
Dimethylsilane C2H8Si
Dimethylthiophosphoryl chloride C2H6ClO2PS
Di-n-butylamine C8H19N
Di-n-propylamine C6H15N
Dioxane, 1,4- C4H8O2
Dioxolane C3H6O2
Dipentene C10H16
Diphenyl ether C12H10O
Dipropyl ether C6H14O
Dipropylene glycol C6H14O3
Disilane Si2H6
Disulfur dibromide Br2S2
Di-tert-butyl-p-cresol C15H24O
Divinylbenzene C10H10
Dodecene C12H26
Epichlorohydrin C3H5ClO
Epoxypropyl isopropyl ether, 2,3- C6H12O2
Estagole C10H12O
Ethanol C2H6O
Ethanolamine C2H7NO
Ethoxy-2-methylpropane, 1- C6H14O
Ethoxy-2-propanol, 1- C5H12O2
Ethoxy-butane, 2- C6H14O
Ethoxyethanol, 2- C4H10O2
Ethoxyethyl acetate, 2- C6H12O3
Ethyl 2,2,2-trifluoroethyl ether C4H7F3O
Ethyl 2-methylbutyrate C7H14O2
Ethyl acetate C4H8O2
Ethyl acetoacetate C6H10O3
Ethyl acrylate C5H8O2
Ethyl benzene C8H10
Ethyl benzoate C9H10O2
Ethyl butyrate C6H12O2
Ethyl chloroformate C3H5O2Cl
Ethyl cyanoacrylate C6H7O2N
Ethyl cyclohexane C8H16
Ethyl decanoate C12H24O2
Ethyl formate C3H6O2
Ethyl hexanoate C8H16O2
Ethyl hexanol, 2- C8H18O
Ethyl hexyl acrylate, 2- C11H20O2
Ethyl iodide C2H5I
Ethyl isopropyl ketone C6H12O
Ethyl lactate C5H10O3
Ethyl mercaptan C2H6S
Ethyl methacrylate C6H10O2
Ethyl morpholine, 4- C6H13NO
Ethyl octanoate C10H20O2
Ethyl phenyl acetate C10H12O2
Ethyl propanoate C5H10O2
Ethyl tert-butyl ether C6H14O
Ethyl toluene C9H12
Ethyl-3-ethoxypropionate C7H14O3
Ethylacetylene C4H6
Ethylamine C2H7N
Ethylene C2H4
Ethylene carbonate C3H4O3
Ethylene glycol C2H6O2
Ethylene glycol diacetate C6H10O4
Ethylene glycol monopropyl ether C5H12O2
Ethylenediamine C2H8N2
Ethyleneimine C2H5N
Ethylhexanal, 2- C8H16O
Ethylhexenal, 2- C8H14O
Eucalyptol C10H18O
Eugenol C10H12O2
Eugenol methyl ether C11H14O2
Fenchol C10H18O
Ferrocene C10H10Fe
Fluorobenzene C6H5F
Fluorobenzoic acid, 4- C7H5FO2
Formamide CH3ON
Furfural C5H4O2
Furfuryl alcohol C5H6O2
Furfuryl mercaptan C5H6OS
Geranial C10H16O
Geraniol C10H18O
Geranyl acetate C12H20O2
Germane GeH4
Glutaraldehyde C5H8O2
Glycidyl methacrylate C7H10O3
Glyoxal C2H2O2
Heptan-2-one C7H14O
Heptan-3-one C7H14O
Heptane C7H16
Heptanol C7H16O
Heptene, 1- C7H14
Heptylcyclopentan-1-one, 2- C12H22O
Heptyne, 1- C7H12
Hex-1-en-3-ol C6H12O
Hexachlorodisilane Cl6Si2
Hexamethyldisilazane, 1,1,1,3,3,3-. C6H18NSi2
Hexamethyldisiloxane C6H18OSi2
Hexamethylene diisocyanate C8H12N2O2
Hexan-2-one C6H12O
Hexane C6H14
Hexanoic acid C6H12O2
Hexanol C6H14O
Hexene, 1- C6H12
Hexenyl acetate, cis-3- C8H14O2
Hexenyl butyrate, cis-3- C10H18O2
Hexylaldehyde C6H12O
Hydrazine H4N2
Hydrogen iodide HI
Hydrogen selenide H2Se
Hydrogen sulfide H2S
Hydrogen telluride H2Te
Hydroxycitronellal C10H20O2
Hydroxyethyl acrylate C5H8O3
Hydroxylamine H3NO
Hydroxypropyl acrylate, 2- C6H10O3
Indene C9H8
Indole C8H7N
Iodine I2
Iodobenzene C6H5I
Iodoethene C2H3I
Iodoform CHI3
Iodomethane CH3I
Isoalkanes, C10-C13
Isoamyl acetate C7H14O2
Isoamyl salicilate C12H16O3
Isoamylene C5H10
Isobornyl acetate C12H20O2
Isobutane C4H10
Isobutanol C4H10O
Isobutyl acetate C6H12O2
Isobutyl acrylate C7H12O2
Isobutylene C4H8
Isobutylene epoxide C4H8O
Isobutyraldehyde C4H8O
Isobutyric acid C4H8O2
Isodecanol C10H22O
Isoeugenol C10H12O2
Isoheptane C7H16
Isojasmone C11H18O
Isomenthone C10H18O
Isononanol C9H20O
Isooctane C8H18
Isooctanol C8H18O
Isopentane C5H12
Isopentene C5H10
Isophorone C9H14O
Isophorone diisocyanate C12H18N2O2
Isoprene C5H8
Isopropanol C3H8O
Isopropanolamine C3H9NO
Isopropoxyethanol, 2- C5H12O2
Isopropyl acetate C5H10O2
Isopropyl chloroformate C4H7O2Cl
Isopropyl mercaptan C3H8S
Isopropyl nitrite C3H7NO2
Isopropylamine C3H9N
Isopropylaminoethanol, 2- C5H13NO
Isopropylcyclohexane C9H18
Isothiazole C3H3NS
Isoxazole C3H3NO
Jasmal C11H22O3
Jasmone, cis- C11H16O
Jet Fuel JP-4
Jet Fuel JP-5
Jet Fuel JP-8
Ketene C2H2O
Linalool oxide C10H18O2
Linalyl acetate C12H20O2
Maleic anhydride C4H2O3
Menthol C10H20O
Menthone C10H18O
Mercaptoacetic acid C2H4O2S
Methacrylic acid C4H6O2
Methacrylonitrile C4H5N
Methanol CH4O
Methoxy-1-butanol, 3- C5H12O2
Methoxy-1-propanol, 2- C4H10O2
Methoxy-2,2-dimethylpropane C6H14O
Methoxybutyl acetate, 3- C7H14O3
Methoxyethanol, 2- C3H8O2
Methoxyethene C3H6O
Methoxyethoxyethanol, 2- C5H12O3
Methoxyethyl acetate C5H10O3
Methoxyethyl ether, 2- C6H14O3
Methoxymethylethoxy-2-propanol C7H16O3
Methoxypropan-2-ol, 1- C4H10O2
Methoxypropane, 2- C4H10O
Methoxypropyl acetate C6H12O3
Methyl 2-methylpropanoate C5H10O2
Methyl acetate C3H6O2
Methyl acetoacetate C5H8O3
Methyl acrylate C4H6O2
Methyl anthranilate C8H9NO2
Methyl benzoate C8H8O2
Methyl bromide CH3Br
Methyl dimethylacrylate C6H10O2
Methyl ethyl ketone C4H8O
Methyl ethyl ketone peroxides C8H18O6
Methyl heptyne carbonate C9H14O2
Methyl ionone C14H22O
Methyl isobutyl ketone C6H12O
Methyl isocyanate C2H3NO
Methyl isopropyl ketone C5H10O
Methyl isothiocyanate C2H3NS
Methyl mercaptan CH4S
Methyl methacrylate C5H8O2
Methyl phenyl acetate C9H10O2
Methyl propargyl ether C4H6O
Methyl propionate C4H8O2
Methyl propynoate C4H4O2
Methyl salicylate C8H8O3
Methyl sulfide C2H6S
Methyl tert-butyl ether C5H12O
Methyl thiocyanate C2H3NS
Methyl thioglyconate C3H6O2S
Methyl undecanal, 2- C12H24O
Methyl vinyl ketone C4H6O
Methyl-1-butene, 3- C5H10
Methyl-2-butanol, 3- C5H12O
Methyl-2-propen-1-ol, 2- C4H8O
Methyl-2-pyrrolidinone, N- C5H9NO
Methyl-5-hepten-2-one, 6- C8H14O
Methylamine CH5N
Methylbutan-1-ol, 3- C5H12O
Methylbutanol C5H12O
Methylcyclohexane C7H14
Methylcyclohexanol C7H14O
Methylcyclohexanol, 4- C7H14O
Methylcyclohexanone, 2- C7H12O
Methylcyclopentane C6H12
Methylenepentane, 3- C6H12
Methylheptan-3-one, 5- C8H16O
Methylhexan-2-one, 5- C7H14O
Methylhydrazine CH6N2
Methylpent-3-en-2-one, 4- C6H10O
Methylpentan-2-ol, 4- C6H14O
Methylpentane, 2- C6H14
Methylpentane, 3- C6H14
Methylpentane-2,4-diol, 2- C6H14O2
Methylpropanoyl chloride, 2- C4H7ClO
Methylstyrene C9H10
Methylthiopropional, 3- C4H8OS
Mineral oil
Mineral spirits
Monoisobutanolamine C4H11NO
Morpholine C4H9NO
Myrcene C10H16
Naphthalene C10H8
Naphthol methyl ether, 2- C11H10O
Nitric oxide NO
Nitrobenzene C6H5NO2
Nitrogen dioxide NO2
Nonane C9H20
Nonanol (all isomers) C9H20O
Nonene (all isomers) C9H18
Nonene, 1- C9H18
Norbornadiene, 2,5- C7H8
Ocatanol (all isomers) C8H18O
Octamethyltrisiloxane C8H24O2Si3
Octane C8H18
Octene (all isomers) C8H16
Octene, 1- C8H16
Oxalyl bromide C2Br2O2
Oxydiethanol 2,2- C4H10O3
Paraffin wax, fume
Paraffins, normal
Pentacarbonyl iron FeC5O5
Pentan-2-one C5H10O
Pentan-3-one C5H10O
Pentanal C5H10O
Pentandione, 2,4- C5H8O2
Pentane C5H12
Pentanoic acid C5H10O2
Pentanol, 2- C5H12O
Pentanol, 3- C5H12O
Pentene, 1- C5H10
Pentylcyclopentan-1-one, 2- C10H18O
Pentylcyclopentane C10H20
Pentyne, 1- C5H8
Peracetic acid C2H4O3
Perfluorobutadiene C4F6
Perfluoro-tert-butylamine C4H2F9N
Petroleum ether
Phellandrene C10H16
Phenethyl methyl ether, 2- C9H12O
Phenol C6H6O
Phenyl ethyl isobutyrate, 2- C12H16O2
Phenyl propene, 2- C9H10
Phenyl-2,3-epoxypropyl ether C9H10O2
Phenylacetaldehyde C8H8O
Phenylacetic acid C8H8O2
Phenylethyl acetate, 1- C10H12O2
Phenylethyl alcohol, 2- C8H10O
Phosphine PH3
Picoline, 3- C6H7N
Pine oil
Pinene, - C10H16
Pinene, C10H16
Piperazine C4H10N2
Piperidine C5H11N
Piperylene C5H8
Prop-2-yn-1-ol C3H4O
Propadiene C3H4
Propan-1-ol C3H8O
Propanamide C3H7NO2
Propane-1,2-diol C3H8O2
Propanolamine C3H9NO
Propargyl chloride C3H3Cl
Propen-1-imine, 2- C3H5N
Propene C3H6
Propiolic acid C3H2O2
Propionaldehyde C3H6O
Propionic acid C3H6O2
Propoxy-2-propanol, 1- C6H14O2
Propyl acetate, n- C5H10O2
Propyl butanoate C7H14O2
Propyl formate C4H8O2
Propyl iodide C3H7I
Propylamine, n- C3H9N
Propylbenzene (all isomers) C9H12
Propylene carbonate C4H6O3
Propylene glycol ethyl ether acetate C7H14O3
Propylene oxide C3H6O
Propyleneimine C3H7N
Propyne C3H4
Pyrazine C4H4N2
Pyrdinol, 4- C5H5NO
Pyridine C5H5N
Pyridylamine 2- C5H6N2
Rose oxide, cis- C10H18O
Stibine SbH3
Styrene C8H8
Sulfur dichloride Cl2S
Terpineol, C10H18O
Terpinolene C10H16
Terpinyl acetate, - C12H20O2
Tert-butanol C4H10O
Tert-butyl bromide C4H9Br
Tert-butyl formate C5H10O2
Tetrabromoethane, 1,1,2,2- C2H2Br4
Tetracarbonylnickel NiC4O4
Tetrachloroethylene C2Cl4
Tetrachloropyridine, 2,3,5,6- C5HCl4N
Tetraethyl orthosilicate C8H20O4Si
Tetrafluoroethylene C2F4
Tetrahydrofuran C4H8O
Tetrahydronaphthalene C10H12
Tetrahydrothiophene C4H8S
Tetramethyl succinonitrile C8H12N2
Tetramethylbenzene (all isomers) C10H14
Tetramethylbutane, 2,2,3,3- C8H18
Tetramethylgermane C4H12Ge
Tetramethylsilane C4H12Si
Tetrathydropyran C5H10O
Thioacetic acid C2H4OS
Thiocarbonyl fluoride CSF2
Thiocyanogen C2S2N2
Thioformaldehyde trimer C3H6S3
Thiophene C4H4S
Thiophosgene CC
Titanium-n-propoxide C12H28O4Ti
Toluene C7H8
Toluene-2,4-diisocyanate C9H6N2O2
Toluenesulfonyl chloride, p- C7H7SO2Cl
Toluidine, o- C7H9N
Tolylaldehyde, p- C8H8O
Triazine, 1,3,5- C3H3N3
Tributyl phosphate C12H27O4P
Tributylamine C12H27N
Trichlorobenzene 1,2,4- C6H3Cl3
Trichloroethylene C2HCl3
Triethyl phosphate C6H15PO4
Triethyl silane C6H16Si
Triethylamine C6H15N
Triethylbenzene C12H18
Triethylene aluminum C6H15Al
Trifluoroethene C2HF3
Trifluoroethyl methyl ether, 2,2,2- C3H5F3O
Trifluoroiodomethane CF3I
Trimethoxymethane C4H10O3
Trimethylamine C3H9N
Trimethylbenzene mixtures C9H12
Trimethylbenzene, 1,3,5- C9H12
Trimethylborate C3H9BO3
Trimethylcyclohexane, 1,2,4- C9H18
Trimethylene oxide C3H6O
Trimethylsilane C3H10Si
Trioxane C3H6O3
Turpentine C10H16
Undecane C11H24
Vanillin C8H8O3
Vinyl acetate C4H6O2
Vinyl bromide C2H3Br
Vinyl chloride C2H3Cl
Vinyl ethyl ether C4H8O
Vinyl fluoride C2H3F
Vinyl-2-pyrrolidinone, 1- C6H9NO
Vinylcyclohexene, n- C8H12
Vinylene carbonate C3H2O3
Vinylidine difluoride C2H2F2
Vinylsilane C2H6Si
Xylene mixed isomers C8H10
Xylene, m- C8H10
Xylene, o- C8H10
Xylene, p- C8H10
Xylidine, all C8H11N
And many more
Our Principals
