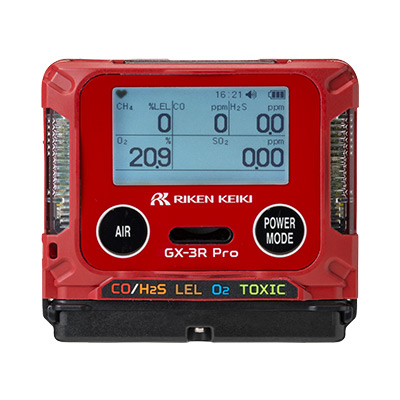

GX-3R Pro

Riken offers world’s smallest and lightest 5-gas monitor, which can detect Carbon Dioxide and Sulfur Dioxide in addition to Combustible gases, O2, H2S and CO. Allowing selection to suit site requirement. Its Full Dot display helps more clearly display Gas reading of all the 5 sensors simultaneously. It comes with option to select Rechargeable batteries or Dry batteries. It comes equipped with Man Down Alarm, panic Alarm and Screen Display inversion features. It can be connected with Smart phone or tablets via Bluetooth using dedicated iOS or Android app, allowing rapid notification of emergencies.

Features
Specification
Accessories

Worlds Smallest 5 sensor Multi Gas Detector
CO2 and SO2 detection in addition to 4 Gases LEL, O2, CO & H2S
Large simultaneous display for 5 gases
Bluetooth ® Connectivity
Motion sensor equipped for man down Alarm
Panic Alarm
Screen Display inversion
Gives Confidence Beep
Water & Dust Resistant to IP66/68
Loud alarm Buzzer 95dB at 30 cm
3 bright LED Alarm windows

Power source : Lithium ion rechargeable or by Dry Batteries
40 hours Battery Life in long –life Battery mode
Robust design (Withstands 7 m drop)
RFI shielded housing
Vibration Alarm
Data Logging standard
Auto-calibration
STEL and TWA readouts
Peak hold readout
Continuously displays current time
Continuously displays Temperature

Model	GX-3R Pro
Detection method	Diffusion type (Changeable to sampling type by attaching RP-3R)
Gas alarm indication	Lamp flashing, continuous modulating buzzer sounding, gas concentration display blinking, vibration Reset operation: Self-latching
Fault alarm	System abnormality, sensor abnormality, battery voltage drop, calibration failure
Fault alarm indication	Lamp flashing, intermittent buzzer sounding, detail display Reset operation: Self-latching
Panic alarm	Two levels: Prealarm and main alarm (after 5-second prealarm) Reset operation: Self-latching
Man down alarm	Three levels: Prealarm 1 (60 seconds), prealarm 2 (75 seconds), main alarm (90 seconds)Reset operation: Self-latching
Display	LCD digital (full-dot), backlight
Displays	Operation status, clock, battery level, temperature, peak reading, calibration notification
Buzzer volume	Approx. 95 dB (30 cm)
Languages	Japanese/English/French/Spanish/Portuguese/German/Italian/Russian/Korean/Chinese (simplified/traditional)
Bluetooth	Bluetooth 4.2 (Bluetooth Low Energy)
Data logger function	Maximum number of items: 3,600 Interval: 5 minutes (adjustable) Communication system: IrDA
Power source	Lithium ion rechargeable battery unit (charging time approx. 3 hours) or dry battery unit (AAA alkaline battery × 2)
Continuous operating time*1	Long-life battery mode on: Approx. 40 hours (25 °C, fully charged, no alarm, no lighting) Long-life battery mode off: Approx. 25 hours (25 °C, fully charged, no alarm, no lighting)
Temperature range/humidity range*2	-40ºC~+60ºC(no sudden changes), 0~95%RH (non-condensation)
Explosion-proof class	TIIS - Ex ia llC T4 Ga ATEX - ll1G Ex da ia llC T4 Ga / lM1 Ex da ia l Ma ( With combustible gas sensor) \| ll1G Ex ia llC T4 Ga / lM1 Ex ia l Ma ( No combustible gas sensor) IECEx - Ex da ia llC T4 Ga / Ex da ia l Ma ( With combustible gas sensor) \| Ex ia llC T4 Ga / Ex ia l Ma ( No combustible gas sensor)
Protection level	Equivalent to IP66/68 (2 m, 1 h)
External dimensions/weight	With rechargeable battery unit: Approx. 73mm(W)×65mm(H)×26mm(D) (excluding protrusions) / Approx. 120 g With dry battery unit: Approx. 73mm(W)×65mm(H)×34mm(D) (excluding protrusions) / Approx. 140 g
