Multi Gas Detector

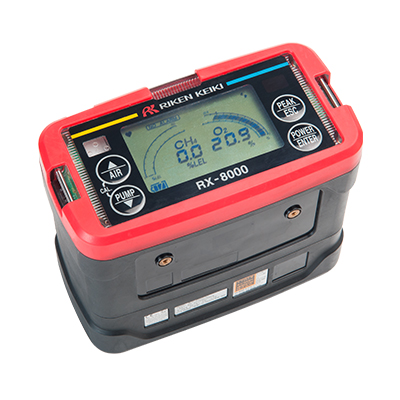

RX-8000
RX-8000 is a Combination Gas Detector with HC and Oxygen sensors. It uses reliable and long life Infra Red sensor to measure HC / CH4 gas in range of 0-100% LEL and 0-100% VOL. It automatically changes range from % LEL to % VOL. Thus it can be used as Explosimeter as well as Tankscope. Large LCD display measures Oxygen Gas Conc. simultaneously. For remote sampling it uses inbuilt pump which can sample upto 30 meters. Single gas sensor version are available on request.
- Features
- Applications
- Approvals
- Specification
- Accessories
- Type
- Real-time Detection for combustibles 100% LEL / 100 vol%, O2
- Large simultsneous display with auto back lighting
- Strong sample grawing capability
- Loud alarm buzzer with 95 db
- 3 bright LED alarm windows
- ATEX Exia IICT4 / MED
- Water and dust resistant IP67
- Lithium-ion rechargeable battery
- Compact and light weight
- Ergonomic design with waist strap for hands free operation
- Datalogging standard
- Oil Tanker
- Gas Carrier
- Product Tanker
- Refineries / Petrochemical / Chemical Plants
- Confined Space
- Gas plant / Gas Supplier Services
- Power Plant
- Water / Wastewater Treatment
- Utilities
- IECEx, ATEX, MED
- Complying to IEC60079-29-1 , EN50104
- CCOE (PESO)
| Target Gas | Combustibles (i-C4H10 or CH4 calibration) |
Oxygen (O2) | |
| Detection Principle | Non-Dispersive Infrared Ray | Galvanic cell | |
| Detection Range (Increments) |
0-100vol% (0.5vol%) |
0-100%LEL (0.5%LEL) |
0-40% (0.1%) |
| Accuracy | ±5vol% | ±5%LEL | Range 0-25% : ±0.7% Range 26-40% : ±3.0% |
| Response Time | T90 within 30sec | T90 within 20sec | |
| Sampling Method | Sample Draw : Minimum 0.75L/min | ||
| Display | Digital display and Bar graph | ||
| Power Source | Lithium-ion battery (3 hours for a full charge) : Standard AA Alkaline battery (3pcs) : Option |
||
| Power Source | Lithium-ion battery (3 hours for a full charge) : Standard AA Alkaline battery (3pcs) : Option |
||
| Continuous Operation | Lithium-ion battery: more than 15 hours AA Alkaline battery: more than 10 hours |
||
| Operating Temp & Humidity | -20∼+50°C(-4 ∼ +122°F) below 95%Rh (Non-condensing | ||
| Dimensions & Weight | Approx.154(W) x 81(H) x 127(D)mm Aprox.1.0Kg (Approx. 6.1" (W) x 3.1"(H) x 5.0"(D)mm Aprox. 2.4lb) |
||
| Ingress Proof Rating | IP67 | ||
| Explosion Proof | Ex ia lIC T4 Ga | ||
| Approvals | IECEx, ATEX, MED Complying to IEC60079-29-1 , EN50104 |
||
| Additional Features | Indication to show energizing (pilot indicator and pump driving indicator), Activating confirmation beep and LED's flash (every one minute), Pump stop function, Bump test function, IrDA communication, Data logger, Password protection | ||
Specfications subject to change without notice
Standard Accessories
- Lithium-ion battery unit BUL-8000
- AC powered charger
( Input : AC100V-AC240V, 50/60HZ Output : DC12V, 1.25A ) - Gas sampling probe
- Gas sampling, hose (Spiral 1m)
- Neck/shoulder strap
- Filter tube
- Fixing belt for filter tube
- Instruction manual
Optional Accessories
- Dry cell battery unit BUD-8000
- Gas sampling hose 8m with float type sampling head
- Gas sampling hose 30m with plummet
- Gas sampling atachement 2 deck valves (For gas measuring inside tanks)
including 30m sampling hose/filter/ two connection adaptor/quick coupling
- Telescopic sampling probe (2step : 0.72m/9step : 3.0m)
- Sampling probe holder on the neck/shoulder strap
- Waist strap
- Carrying box (Aluminum
- Datalogging software
- RX-8000 (i-C4H10 / 02)
- RX-8000 (CH4 / 02)
- RX-8000 (i-C4H10) single
- RX-8000 (CH4) single
